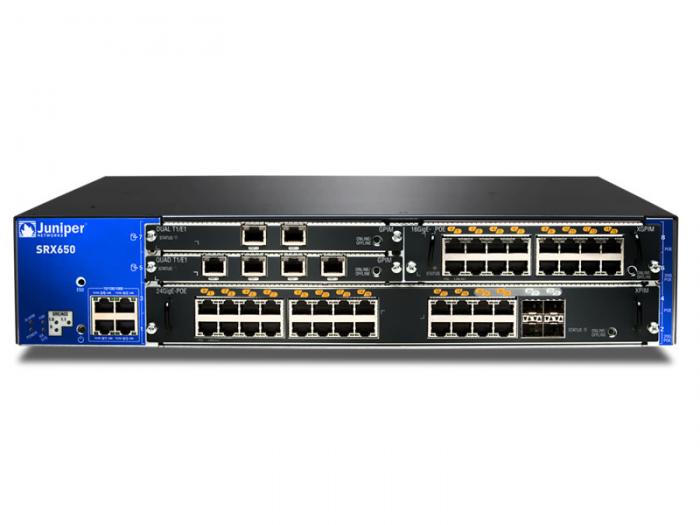

The SRX650 Services Gateway is a 2RU device that consolidates security, routing, switching, and WAN connectivity. It supports up to 7.0 Gbps firewall, 1.5 Gbps IPSec VPN, and 900 Mbps IPS.
Unified threat management (UTM) features include: antivirus, application security, IPS, antispam, and enhanced Web filtering. The SRX650 Services Gateway is ideally suited for securing regional distributed enterprise locations.
|
Junos OS version tested |
Junos OS 11.4R5 |
|
Firewall performance (max) |
7 Gbps |
|
IPS performance (NSS 4.2.1) |
1 Gbps |
|
AES256+SHA-1 / 3DES+SHA-1 VPN performance |
1.5 Gbps |
|
Maximum concurrent sessions |
512 K |
|
New sessions/second (sustained, TCP, 3-way) |
35,000 |
|
Maximum security policies |
8,192 |
|
Maximum users supported |
Unrestricted |
|
Maximum available slots for IOCs |
8 x GPIM or multiple GPIM and XPIM combinations |
|
WAN / LAN fixed ports |
4 x 10/100/1000BASE-T |
|
CX111 3G/4G modem support |
Yes |
|
WAN / LAN PIMs |
· 1 x DS3/E3 · Dual Port T1/E1 · Quad Port T1/E1 · 16 x 1 10/100/1000 copper (PoE optional) · 24 x 1 10/100/1000 copper w / 4SFP ports (PoE optional) · 8 x 1 GbE SFP · 2 x 10 GbE SFP+ / 10 GbE Base-T Copper |
|
High-availability support |
Yes |
|
AppSecure Services |
Junos OS 11.4 |
|
Dimensions and Power |
· Dimensions (W x H x D): 17.5 x 3.5 x 18.2 in (44.4 x 8.8 x 46.2 cm) · Weight: Chassis: 24.9 lbs (11.3 kg) No interface modules 1 power supply · Power supply (AC): 100–240 VAC, Single 250 W or Dual 250 W · Maximum power draw: 247 W redundant, or 494 W non-redundant · Average power consumption: 122 W |
