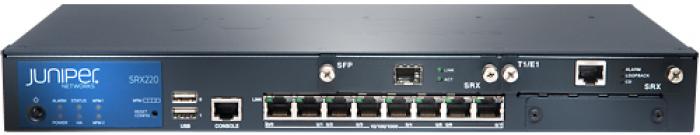

The SRX220 Services Gateway consolidates security, routing, switching, and WAN connectivity, in an all-in-one, 1RU device that supports up to 950 Mbps firewall, 100 Mbps IPSec VPN, and 100 Mbps IPS. Unified threat management (UTM) features include antivirus, application security, IPS, antispam, and enhanced Web filtering. The SRX220 Services Gateway is ideally suited for securing small to medium distributed enterprise locations.
|
Junos OS version tested |
Junos OS 12.1X44-D15 |
|
Firewall performance (max) |
950 Mbps |
|
IPS performance (NSS 4.2.1) |
80 Mbps |
|
AES256+SHA-1 / 3DES+SHA-1 VPN performance |
100 Mbps |
|
Maximum concurrent sessions |
96K |
|
New sessions/second (sustained, TCP, 3-way) |
2,800 |
|
Maximum security policies |
2,048 |
|
Maximum users supported |
Unrestricted |
|
Maximum available slots for IOCs |
2 x SRX Series Mini-PIM |
|
WAN / LAN fixed ports |
· 8 x 10/100/1000BASE-T |
|
CX111 3G/4G modem support |
Yes |
|
WAN / LAN PIMs |
· T1/E1 · ADSL2 Annex A · ADSL2 Annex B · G.SHDSL · VDSL2 · DOCSIS 3.0 Cable Modem · GbE SFP · Sync Serial |
|
High-availability support |
Yes |
|
AppSecure Services |
Junos OS 11.4 |
|
Dimensions and Power |
· Dimensions (W x H x D): 14.31 x 1.73 x 7.11 in (36.3 x 4.4 x 18.1 cm) · Weight: Chassis: 3.43 lb (1.56 kg) Non-PoE No interface modules · Power supply (AC) 100–240 VAC, 60 W (Non-PoE) / 200 W PoE · Maximum power draw: 120 W · Average power consumption: 28 W (LM) |
