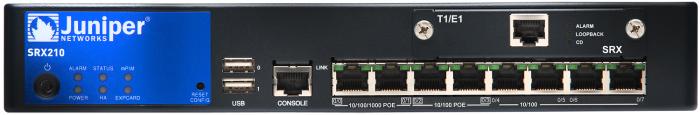

Juniper SRX210

The SRX210 Services Gateway consolidates security, routing, switching, and WAN connectivity and supports up to 850 Mbps firewall, 85 Mbps IPSec VPN, and 85 Mbps IPS in a shelf-sized device that can also be mounted in pairs, side-by-side in a rack. Unified threat management (UTM) features include: antivirus, application security, IPS, antispam, and enhanced Web filtering. With wired and 3G wireless connectivity options, the SRX210 Services Gateway is ideally suited for securing small distributed enterprise locations.

Junos OS version tested

Junos OS 12.1X44-D15

Firewall performance (max)

850 Mbps

IPS performance (NSS 4.2.1)

65 Mbps

AES256+SHA-1 / 3DES+SHA-1 VPN performance

85 Mbps

Maximum concurrent sessions

64K

New sessions/second (sustained, TCP, 3-way)

2,200

Maximum security policies

512

Maximum users supported

Unrestricted

Maximum available slots for IOCs

1 x SRX Series Mini-PIM

WAN / LAN fixed ports

·         2 x 10/100/1000BASE-T + 6 x 10/100 BASE-T

CX111 3G/4G modem support

Yes

WAN / LAN PIMs

·         T1/E1

·         ADSL2 Annex A

·         ADSL2 Annex B

·         G.SHDSL

·         VDSL2 Annex A

·         DOCSIS 3.0 Cable Modem

·         GbE SFP

·         Sync Serial

High-availability support

Yes

AppSecure Services

Junos OS 11.4

Dimensions and Power

·         Dimensions (W x H x D): 11.02 x 1.73 x 7.12 in (28.0 x 4.4 x 18.1 cm)

·         Weight: Chassis: 3.3 lb (1.5 kg) Non-PoE / 4.4 lb (2 kg) PoE No interface modules

·         Power supply (AC): 100–240 VAC, 60 W (Non-PoE) / 150 W PoE

·         Maximum power draw: 50 W

·         Average power consumption: 27 W Low Memory (LM), 28 W High Memory (HM), 84 W (PoE)
