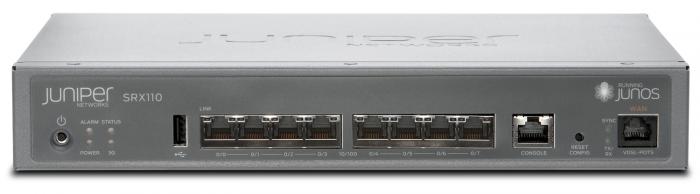

The SRX110 Services Gateway consolidates security, routing, switching, and WAN connectivity in small desktop device. It supports up to 700 Mbps firewall and 65 Mbps IPsec VPN, in a single, consolidated, cost-effective networking and security platform. Unified threat management (UTM) features include: antivirus, application security, IPS, antispam, and enhanced Web filtering. It also features a built-in VDSL/ADSL2+ WAN interface, 3G/4G capabilities, and an 8-port Fast Ethernet switch. The SRX110 is ideally suited for securing small branch deployments.
|
Junos OS version tested |
Junos OS 12.1X44-D15 |
|
Firewall performance (max) |
700Mbps |
|
IPS performance (NSS 4.2.1) |
75 Mbps |
|
AES256+SHA-1 / 3DES+SHA-1 VPN performance |
65 Mbps |
|
Maximum concurrent sessions |
32K |
|
New sessions/second (sustained, TCP, 3-way) |
1,800 |
|
Maximum security policies |
384 |
|
Maximum users supported |
Unrestricted |
|
Maximum available slots for IOCs |
N/A |
|
WAN / LAN fixed ports |
· 8 x 10/100BASE-T · VDSL2/ADSL2+ dedicated · WAN (Annex A or Annex B) |
|
CX111 3G/4G modem support |
Yes |
|
WAN / LAN PIMs |
N/A |
|
High-availability support |
Not available |
|
AppSecure Services |
Junos OS 11.4 |
|
Dimensions and Power |
· Dimensions (W x H x D): 11.02 x 1.72 x 8.385 in (28 x 4.37 x 21.3 cm) · Weight [device and power supply]: 6.7lb/3.06Kg · Chassis: 3.5 lbs (1.6kg) · Power supply (AC): —240 VAC, 60 W · Maximum power draw: 29 W · Average power consumption: 24 W |
