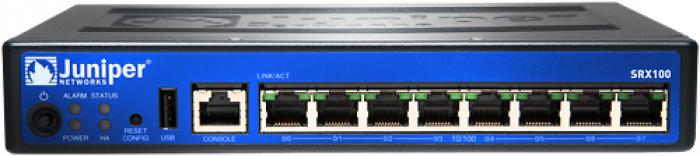

The SRX100 Services Gateway is a desktop device, ideally suited for securing small distributed enterprise locations. It consolidates security, routing, switching, and WAN connectivity, and supports up to 700 Mbps firewall and 65 Mbps IPsec VPN. Unified threat management (UTM) features include: antivirus, application security, IPS, antispam, and enhanced Web filtering.
|
Junos OS version tested |
Junos OS 12.1X44-D15 |
|
Firewall performance (max) |
700 Mbps |
|
IPS performance (NSS 4.2.1) |
75 Mbps |
|
AES256+SHA-1 / 3DES+SHA-1 VPN performance |
65 Mbps |
|
Maximum concurrent sessions |
32K |
|
New sessions/second (sustained, TCP, 3-way) |
1,800 |
|
Maximum security policies |
384 |
|
Maximum users supported |
Unrestricted |
|
Maximum available slots for IOCs |
N/A |
|
WAN / LAN fixed ports |
· 8 x 10/100 |
|
CX111 3G/4G modem support |
Yes |
|
WAN / LAN PIMs |
N/A |
|
High-availability support |
Yes |
|
AppSecure Services |
Junos OS 11.4 |
|
Dimensions and Power |
· Dimensions (W x H x D): 8.5 x 1.4 x 5.8 in (21.6 x 3.6 x 14.7 cm) · Weight [device and power supply]: Chassis: 2.5 lbs (1.1kg) · Power supply (AC): 100-240 VAC, 30 W · Maximum power draw: 30 W · Average power consumption: 10 W |
